Tuesday, December 21, 2010

Debugging into NServiceBus so you can solve your own questions

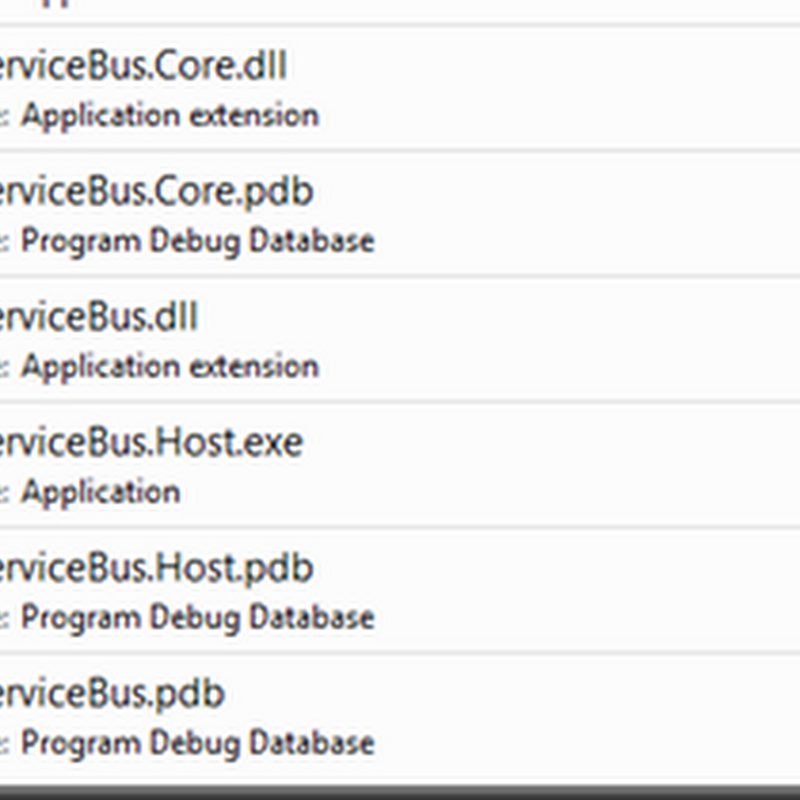

Blog_Image In my previous post I talked about how one of the main problems with NServiceBus is the learning curve to become familiar with all the setup and configuration options. As NServiceBus is an Open Source project, you are able to to download the code. Once you’ve done this in a few simple steps you can start stepping into the source code as if it's your own code. Which makes solving some of the more complex questions with NServiceBus soooo much easier. For example, what does the "Lite" profile do? Well we can find out by stepping through the code. Here is a quick guide on setting up NServiceBus so you can debug into the code.

Downloading the Source code

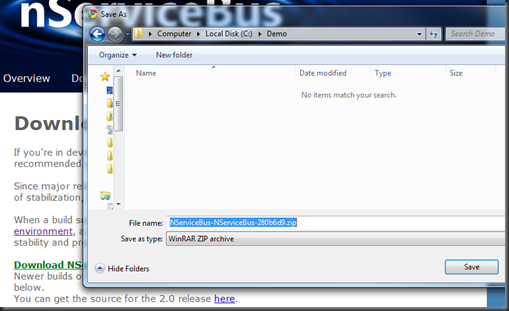

The NServiceBus downloads page explains how to download the source code. I went for version 2.0 of the code.

You can get the source for the 2.0 release here.


Compiling the source code to get at the pdb files.

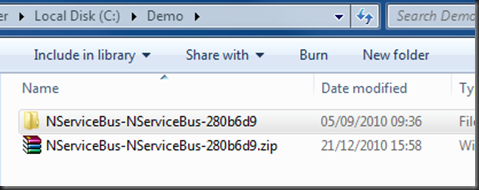

Once you’ve downloaded the source code you’ll need to extract it:


  • Open up a command prompt and go to the extract folder
  • Type in build.bat

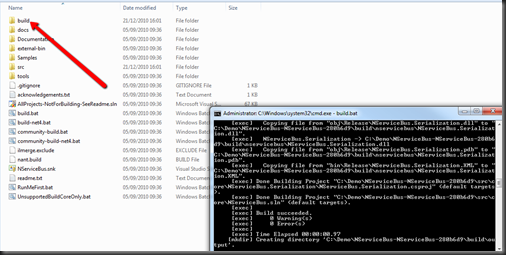

  • If it’s working it should immediately create a folder called “build” as in the following picture:


  • It takes a while to complete. Once it’s done you should see “BUILD SUCCEEDED”


Setting up Visual Studio to support NServiceBus debugging

Once the build has finished, you can now reference the dlls and more importantly the pdb files which should be in:


To demo this we’ll create a new NServiceBus client using the Generic Host and the “Lite” profile.

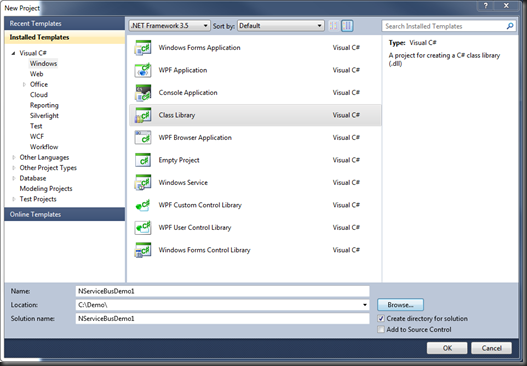

  • Open up visual studio
  • File >> New >> Project
  • Select "Class Library"
  • Call it “NServiceBusDemo1”


  • Click Ok
  • When your solution has loaded right click on the Solution in the Solution Explorer and click “Open Folder in Windows Explorer”
  • Create a new folder called “Dependencies”
  • Copy in the following 7 files:

  1. NServiceBus-NServiceBus-280b6d9\build\output\NServiceBus.dll
  2. NServiceBus-NServiceBus-280b6d9\build\output\NServiceBus.pdb
  3. NServiceBus-NServiceBus-280b6d9\build\output\NServiceBus.Core.dll
  4. NServiceBus-NServiceBus-280b6d9\build\output\NServiceBus.Core.pdb
  5. NServiceBus-NServiceBus-280b6d9\build\output\host\NServiceBus.Host.exe
  6. NServiceBus-NServiceBus-280b6d9\build\output\host\NServiceBus.Host.pdb
  7. NServiceBus-NServiceBus-280b6d9\build\tools\log4net.dll

from wikipedia:

“PDB stands for Program Database, a proprietary file format (developed by Microsoft) for storing debugging information about a program (or, commonly, program modules such as a DLL or EXE). PDB files commonly have a .pdb extension. A PDB file is typically created from source files during compilation. It stores a list of all symbols in a module with their addresses and possibly the name of the file and the line on which the symbol was declared. This symbol information is not stored in the module itself, because it takes up a lot of space.”

Which means that without the pdb files you won’t be able to step into the code and debug NServiceBus. The reason I like to recompile the source code is that the pdb files point to the directory containing the source code which makes life easier. Also it’s good practise anyway, so that if you want to change any of the source code you can.

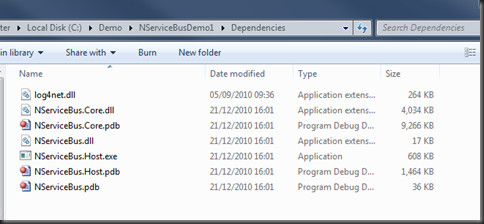

  • This should result in a folder like this:


  • Go back to visual studio and add references to the dlls and exe


  • Now we’ll create a very basic NServiceBus solution to demo the debugging:

Creating an NServiceBus “Client” to demo debugging

To demo this I copied the over the following 4 files from the FullDuplex example project into my new project:

  1. NServiceBus-NServiceBus-280b6d9\Samples\FullDuplex\MyClient\App.config
  2. NServiceBus-NServiceBus-280b6d9\Samples\FullDuplex\MyClient\ClientEndpoint.cs
  3. NServiceBus-NServiceBus-280b6d9\Samples\FullDuplex\MyClient\DataResponseMessageHandler.cs
  4. NServiceBus-NServiceBus-280b6d9\Samples\FullDuplex\MyClient\EndpointConfig.cs


  • Go back to visual studio and include all the above files in the project

NService Bus Include Files

  • Next I’ll delete “Class1.cs”
  • If you try to compile at this point it will moan about the missing “message” project. So let's create that now:
  • Right Click on the solution in the solution explorer and click Add >> New Project
  • Call the new Project “NServiceBusDemo1_Messages”


  • Copy over the following file into the “NServiceBusDemo1_Messages” project folder:
  1. NServiceBus-NServiceBus-280b6d9\Samples\FullDuplex\MyMessages\Messages.cs


  • Open up visual studio and include this file into the “NServiceBusDemo1_Messages” project :

Include MEssage class

  • Delete “Class1.cs”
  • Include Reference to NServiceBus


  • We’ll need to reference the “NServiceBusDemo1_Messages” project from the “NServiceBusDemo1” project:


  • Now we’ll need to update the app.config to reference the new project. Change the line:
<add Messages="MyMessages" Endpoint="MyServerInputQueue" />


<add Messages="NServiceBusDemo1_Messages" Endpoint="MyServerInputQueue" />


  • The solution should now build. Press F6 to test
  • Finally we’ll need to run the project using the generic host.
  • Right Click on the “NServiceBusDemo1” project and select properties
  • Click the Debug Tab
  • Select Start Action “Start external program:”
  • Browse to the bin/Debug folder of the “NServiceBusDemo1” project and select the generic host:


  • You should now be able to run the “NServiceBusDemo1” project in debug. To test put a break point on the Console.WriteLine( in the ClientEndpoint.cs file


  • Right Click on the “NServiceBusDemo1” project in the solution explorer and select Debug >> Start new instance
  • The program should break on the Console.WriteLine
  • Now press F10 until you get to the Bus.Send<RequestDataMessage>(m => line
  • Press F11 to step into the code


  • That it. You’re now debugging the code and should be able to use this to help solve your own problems :)
